Briggs & Stratton I/C 14 HP Engine (Model 287707)
Briggs & Stratton I/C 14 HP Engine (Model 287707)
Couldn't load pickup availability

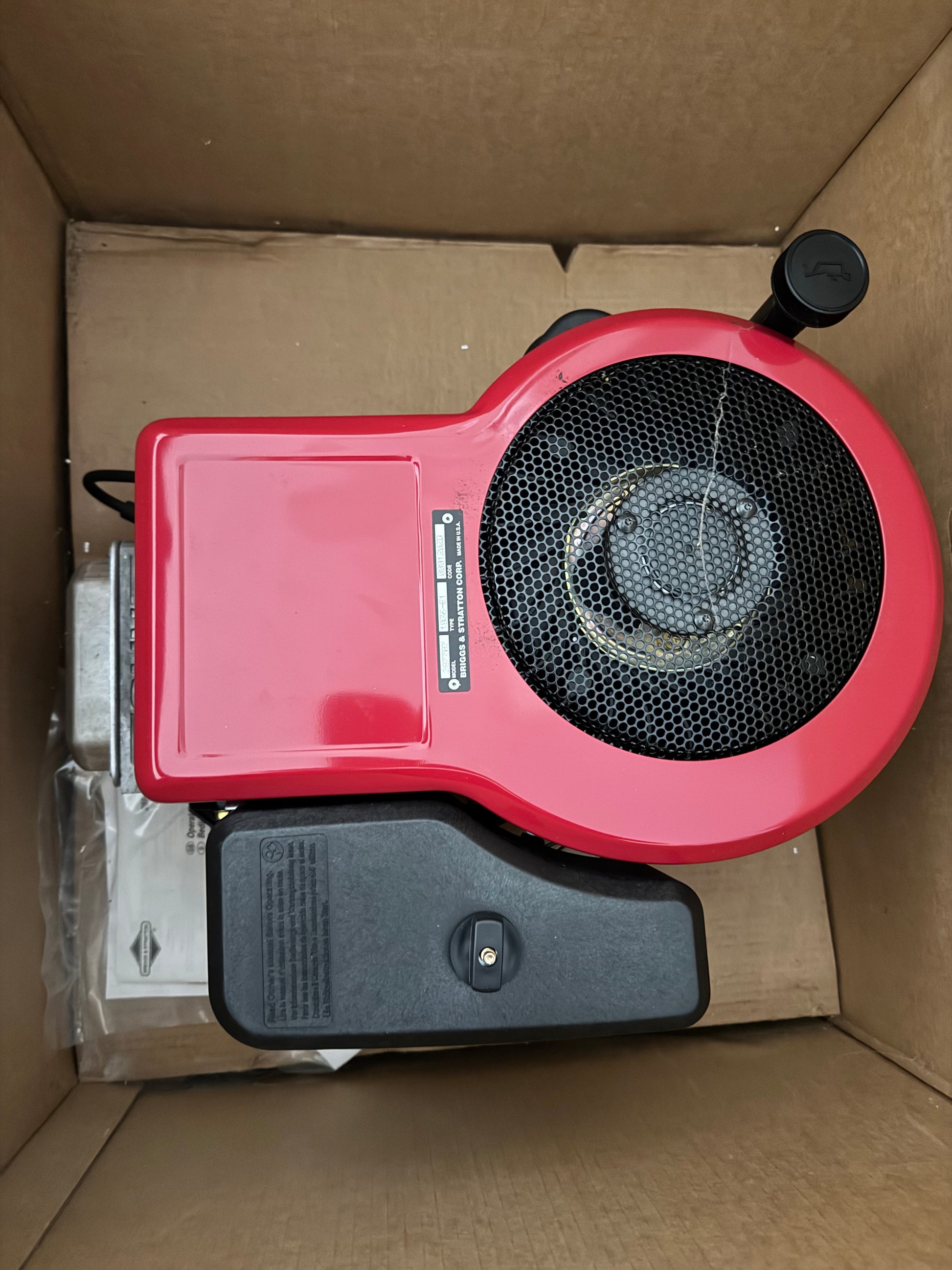

Brand new Briggs & Stratton Industrial/Commercial (I/C) 14 HP horizontal shaft engine. Model 287707 is one of Briggs & Stratton’s heavy-duty large-frame cast iron sleeve engines built for commercial and industrial service.
These engines were commonly used on commercial generators, log splitters, hydraulic power units, construction equipment, stump grinders, pressure washers, and agricultural machinery. The 14 HP I/C series is known for exceptional torque, durability, and long service life.
This engine appears to be new old stock (NOS), never installed, and includes original factory paperwork.
Specifications
|

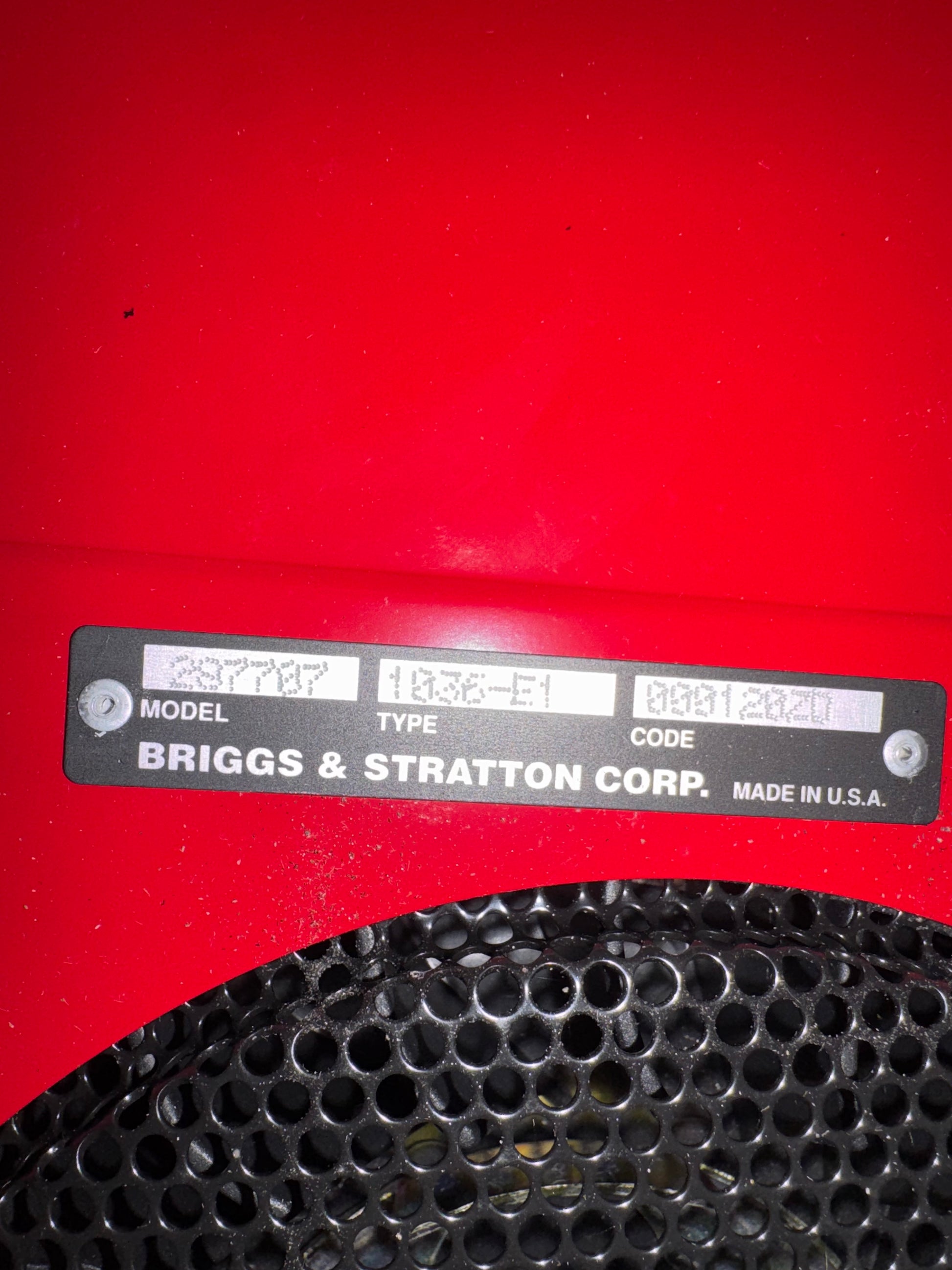

Engine Model |
287707 |
|
Type |
1036-E1 |
|
Engine Family |
I/C Industrial Commercial |
|
Horsepower |
14 HP Gross |
|
Displacement |
465 cc (28.6 cu. in.) |
|
Cylinders |
Single Cylinder |
|
Engine Design |
L-Head (Flathead) |
|
Sleeve Type |
Cast Iron Cylinder Sleeve |
|
Shaft Orientation |
Horizontal |
|
Crankshaft Diameter |
1†Diameter |
|
Crankshaft Length |
Approximately 3-5/32†|
|
PTO Rotation |
Counterclockwise (viewed from PTO end) |
|
Starting System |
Recoil Start |
|
Fuel Tank Capacity |
Approximately 1.5 gallons |
|
Oil Capacity |
48 oz. (1.5 quarts) |
|
Ignition |
Magnetron Electronic Ignition |
|
Governor |
Mechanical |
|
Cooling |
Air-Cooled |
|
Fuel |
Regular Unleaded Gasoline |
|
Spark Plug |
Champion RJ19LM or equivalent |
|
Weight |
Approximately 75–85 lb |
Common Applications
- Log Splitters
- Commercial Generators
- Pressure Washers
- Hydraulic Power Units
- Chipper/Shredders
- Construction Equipment
- Agricultural Equipment
- Water Pumps
- Industrial Machinery
Benefits
✔ Heavy-duty cast iron sleeve cylinder
✔ Massive low-end torque
✔ Commercial-grade I/C construction
✔ Excellent replacement for industrial equipment
✔ Strong parts availability
✔ Made in USA Briggs quality
